R-1
DRIVE POSITION
REGULAR TREAD
GENERAL FARMING
Tread Codes Explained
Until tire manufacturers invent the magic "do-it-all" tire, it is of utmost importance to select the ideal tire for a given application. At best, an incorrect tire will simply wear at an excessive rate. At worst, the wrong tire will render the equipment completely useless.

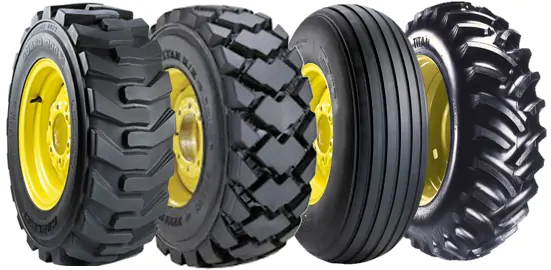

Fortunately, tire manufacturers build tires according to categories that have been designated by the Tire and Rim Industry. These categories provide a great basic understanding of the conditions and applications that a tire is best suited. Below we will give a breakdown of the codes, general descriptions, and a sample pictures to help you better understand these categories.
R-1W
DRIVE POSITION
WET TRACTION TREAD
WET OR MOIST SOIL
R-2
DRIVE POSITION
RICE & CANE, DEEP TREAD
WET OR MOIST SOIL
R-3
DRIVE POSITION
SHALLOW TREAD
MOWING, HIGHWAYS, ORCHARDS
R-4
DRIVE POSITION
BAR TREAD
INDUSTRIAL SERVICE
F-1
AGRICULTURAL STEER
SINGLE RIB TREAD
RICE FARMING
F-2
AGRICULTURAL STEER
THREE RIB TREAD
GENERAL FARMING
F-2M
AGRICULTURAL STEER
FOUR RIB TREAD
GENERAL FARMING
F-3
AGRICULTURAL STEER
MULTI RIB TREAD
LIGHT INDUSTRIAL SERVICE
I-1
FREE ROLLING
MULTI RIB TREAD
IMPLEMENT
I-3
DRIVE WHEEL
TRACTION TREAD
IMPLEMENT
FI
FREE ROLLING
MULTI RIB TREAD
HIGHWAY RATED IMPLEMENT
E-2
EARTHMOVER
TRACTION TREAD
100% TREAD DEPTH
E-3
EARTHMOVER
ROCK TREAD
100% TREAD DEPTH
E-4
EARTHMOVER
DEEP ROCK TREAD
150% TREAD DEPTH
E-7
PAVER
FLOTATION TREAD
80% TREAD DEPTH
L-2
LOADER & DOZER
TRACTION TREAD
100% TREAD DEPTH
L-3
LOADER & DOZER
ROCK TREAD
100% TREAD DEPTH
L-4
LOADER & DOZER
ROCK DEEP TREAD
150% TREAD DEPTH
L-5
LOADER & DOZER
ROCK EXTRA DEEP TREAD
250% TREAD DEPTH
L-5S
LOADER & DOZER
SMOOTH EXTRA DEEP TREAD
250% TREAD DEPTH
G-2
GRADER
TRACTION TREAD
100% TREAD DEPTH
G-3
GRADER
ROCK TREAD
100% TREAD DEPTH
